EDS Plot Log Plotting Software

EDSPlot™ Version 1

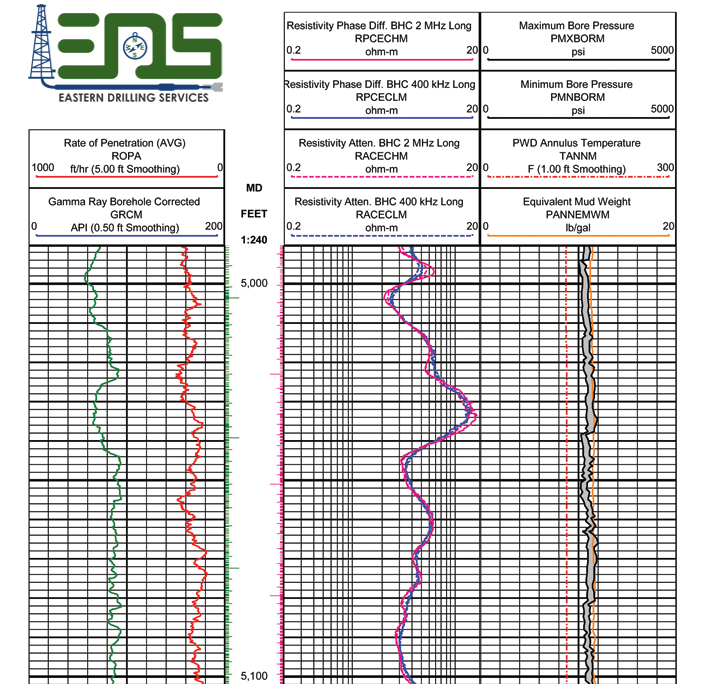

EDS Technology’s EDSPlot software is a complete plotting package with easy-to-use graphical user interface. This package allows the user to quickly configure and plot API RP 31A compliant logs based on Measured Depth (MD), True Vertical Depth (TVD) and time scales. Configured header and log formats and styles can be stored as templates, separate from the log data, so that identical log presentations can be easily applied to all data sets for specific customer or situations. Log and templates can be created using SI (metric) or English units.



EDSPlot offers unparalleled ease-of-use, including:

• Rapid plot creation: A 3-track plot can be created in 10 mouse clicks
• 1-click track mnemonic change
• Straightforward, intuitive changes to track or plot scaling
• Multiple simultaneous open logs
• Simple, robust PDF output
• Straightforward insertion of casing, coring, connection and sliding symbols and annotations
